Scenario Testing

Simulates real-world driving scenarios and situations to validate the ADAS system’s responses and performance.

ADAS Scenario Testing involves evaluating Advanced Driver Assistance Systems (ADAS) in various simulated and real-world driving situations. The goal is to ensure the system’s safety, accuracy, and functionality across dynamic environments and scenarios. This type of testing is essential for validating features like Adaptive Cruise Control (ACC), Lane Departure Warning (LDW), Lane Keep Assist (LKA), Autonomous Emergency Braking (AEB), and more.

Purpose of Scenario Testing

  1. Safety Assurance: Verify ADAS responses in critical situations to avoid accidents.
  2. Realistic Simulations: Test system behavior under real-world driving conditions.
  3. Regulatory Compliance: Meet safety standards like NCAP protocols, UNECE regulations, and ISO guidelines.
  4. System Integration: Ensure ADAS features work cohesively and do not conflict with one another.

Key Scenarios for ADAS Testing

1. Lane Management

  • Lane Departure:
    • Vehicle drifts out of the lane without turn signal activation.
    • Test for proper alerts (visual, auditory, or haptic).
  • Lane Keeping Assist (LKA):
    • Vehicle slightly deviates, and the system gently steers it back into the lane.
    • Test on straight and curved roads with varying lane visibility.
  • Lane Change Assist:
    • Check safe lane changes using turn signals and blind spot monitoring.

2. Adaptive Cruise Control (ACC)

  • Following Distance:
    • Test maintaining a safe distance from the leading vehicle at various speeds.
  • Stop-and-Go Traffic:
    • Simulate slow-moving traffic, where the system stops and restarts automatically.
  • Sudden Stops:
    • Leading vehicle brakes suddenly; test system response time and braking distance.

3. Collision Avoidance

  • Forward Collision Warning (FCW):
    • Simulate an obstacle suddenly appearing in the vehicle’s path.
    • Test warning issuance and timing.
  • Autonomous Emergency Braking (AEB):
    • Verify automatic braking to avoid collisions with vehicles, pedestrians, or cyclists.

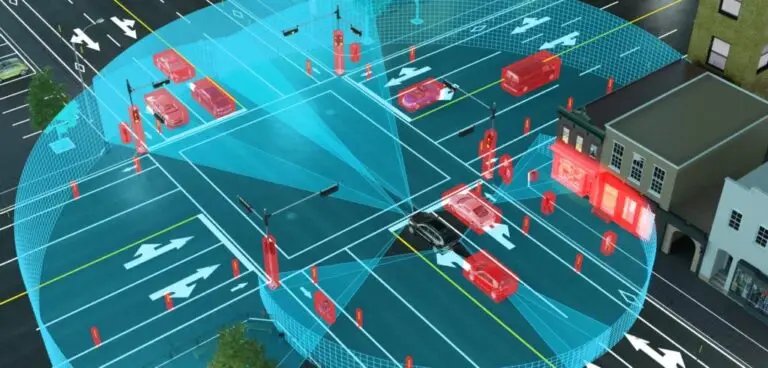

  • Intersection Scenarios:
    • Evaluate AEB when crossing or turning at intersections with potential hazards.

4. Blind Spot Monitoring

  • Lane Change Hazards:
    • Test warnings for vehicles in adjacent lanes during a lane change attempt.
  • Parking Lot Navigation:
    • Detect objects or vehicles approaching from the side in low-speed maneuvers.

5. Parking Assistance

  • Parallel Parking:
    • Test the system’s ability to identify and guide the vehicle into a parallel parking space.
  • Perpendicular Parking:
    • Evaluate detection of obstacles and proper alignment in standard parking spots.
  • Obstacle Avoidance:
    • Verify the system avoids static and dynamic obstacles while parking.

6. Traffic Sign and Signal Recognition

  • Sign Recognition:
    • Test for accurate detection and interpretation of speed limits, stop signs, and yield signs.
  • Traffic Light Response:
    • Evaluate response to green, yellow, and red lights, particularly in AEB systems.

7. Pedestrian and Cyclist Detection

  • Crosswalk Scenarios:
    • Test responses to pedestrians suddenly entering crosswalks.
  • Cyclist Overtaking:
    • Ensure safe distance is maintained while overtaking cyclists on narrow roads.
  • Pedestrian Night Scenarios:
    • Verify detection under low visibility conditions (e.g., nighttime or bad weather).

8. Environmental Conditions

  • Weather:
    • Test ADAS functions in rain, snow, fog, and bright sunlight.
  • Lighting:
    • Scenarios with glare, shadows, or low-light conditions.
  • Road Surface:
    • Performance on wet, icy, sandy, or debris-covered roads.

9. Emergency Scenarios

  • Sudden Obstacles:
    • Simulate an animal or object entering the vehicle’s path.
  • Tire Blowouts:
    • Evaluate stability and response to sudden loss of tire pressure.
  • Driver Takeover:
    • Test driver handoff requests when ADAS systems reach their limits.

10. Complex Traffic Scenarios

  • Roundabouts:
    • System navigation and lane management in multilane roundabouts.
  • Highway Merges:
    • Smooth merging into high-speed traffic.
  • Urban Traffic:
    • Handling frequent stops, pedestrian crossings, and unpredictable vehicles.

Methods for ADAS Scenario Testing

1. Simulation-Based Testing

  • Hardware-in-the-Loop (HIL):
    • Integrates vehicle hardware with virtual environments to test ADAS components.
  • Software-in-the-Loop (SIL):
    • Uses virtual simulations to test algorithms and software.
  • Driving Simulators:
    • Allows safe testing of edge cases (e.g., high-speed emergencies).

2. Field Testing

  • Conduct tests on closed tracks with controlled setups for specific scenarios.
  • Perform real-world driving tests on highways, urban roads, and rural areas.

3. Data Collection and Replay

  • Use real-world driving data to recreate specific scenarios in simulation environments.

4. Automated Testing Frameworks

  • Use tools like CARLA, Prescan, or IPG CarMaker for scenario modeling and automated testing.
