Lane Departure Warning

Lane Departure Warning (LDW) testing ensures the system accurately detects lane boundaries, triggers timely warnings, and functions reliably across various real-world conditions. This testing is essential for validating the system’s effectiveness in reducing lane-drift-related accidents. Below is a comprehensive guide to testing an LDW system.

Key Objectives

  1. Accuracy: Validate correct lane detection and warning triggers.
  2. Timeliness: Ensure warnings are issued promptly to give drivers enough time to react.
  3. Reliability: Confirm consistent performance under diverse conditions (weather, road types, etc.).
  4. Compliance: Adhere to standards like UNECE R79, ISO 17361, and NCAP protocols.

Types of Testing for LDW

1. Functional Testing

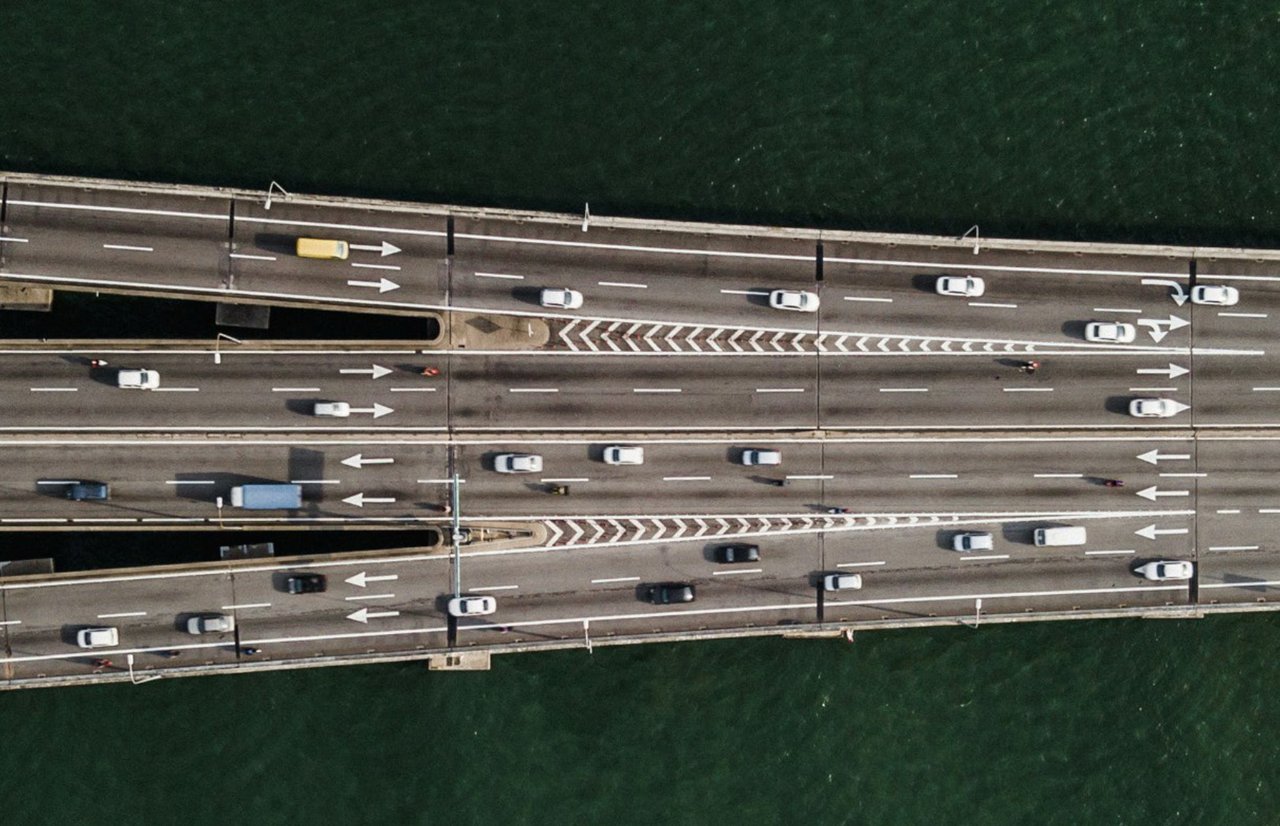

  • Lane Detection:
    • Test detection of solid, dashed, and worn lane markings.
    • Evaluate system performance on different road types (highways, city streets, rural roads).
  • Trigger Validation:
    • Ensure warnings are activated when the vehicle crosses a lane boundary without turn signals.
    • Confirm that the system does not trigger false positives during lane changes with signals.

2. Performance Testing

  • Response Time:
    • Measure the time between lane deviation detection and warning issuance.
  • Speed Sensitivity:
    • Validate performance across speed ranges (e.g., low speeds vs. highway speeds).
  • Lane Drift Angles:
    • Test system responses for varying angles of lane departure (gradual vs. sharp).

3. Environmental Testing

  • Lighting Conditions:
    • Test under bright sunlight, dusk, nighttime, and shadows.
  • Weather Conditions:
    • Evaluate performance in rain, fog, snow, and varying visibility levels.
  • Road Surface Variations:
    • Test on clean, worn, wet, icy, or debris-covered roads.
  • Construction Zones:
    • Ensure proper behavior when lane markings are irregular or temporary.

4. Usability Testing

  • Driver Alerts:
    • Assess clarity, intuitiveness, and effectiveness of visual, audible, and haptic warnings.
  • Distraction Analysis:
    • Ensure alerts do not distract the driver excessively.

5. Robustness Testing

  • False Positives and Negatives:
    • Evaluate how often the system triggers unnecessary warnings or misses actual lane departures.
  • Occlusions:
    • Test performance when lane markings are partially obscured by dirt, water, or other vehicles.

6. Edge-Case Testing

  • Complex Scenarios:
    • Roads with multiple lane markings (e.g., intersections, exits, merging lanes).
    • Driving next to large vehicles casting shadows on lane markings.
  • Dynamic Lane Changes:
    • Evaluate system responses when the vehicle temporarily straddles lanes, such as avoiding obstacles.

7. Compliance Testing

  • Test alignment with global regulatory and safety standards:
    • NCAP Protocols: Check if the system meets criteria for higher safety ratings.
    • ISO 17361: Specific guidelines for LDW system functionality.

8. Integration Testing

  • Test how LDW integrates with other ADAS features, such as Lane Keeping Assist (LKA), Adaptive Cruise Control (ACC), or Autonomous Emergency Braking (AEB).

Testing Tools and Methods

  • Hardware-in-the-Loop (HIL):
    • Simulates vehicle dynamics and lane conditions in a controlled environment.
  • Software-in-the-Loop (SIL):
    • Validates LDW algorithms using simulated inputs from cameras and sensors.
  • Field Testing:
    • Real-world testing on different terrains, roads, and weather conditions.
